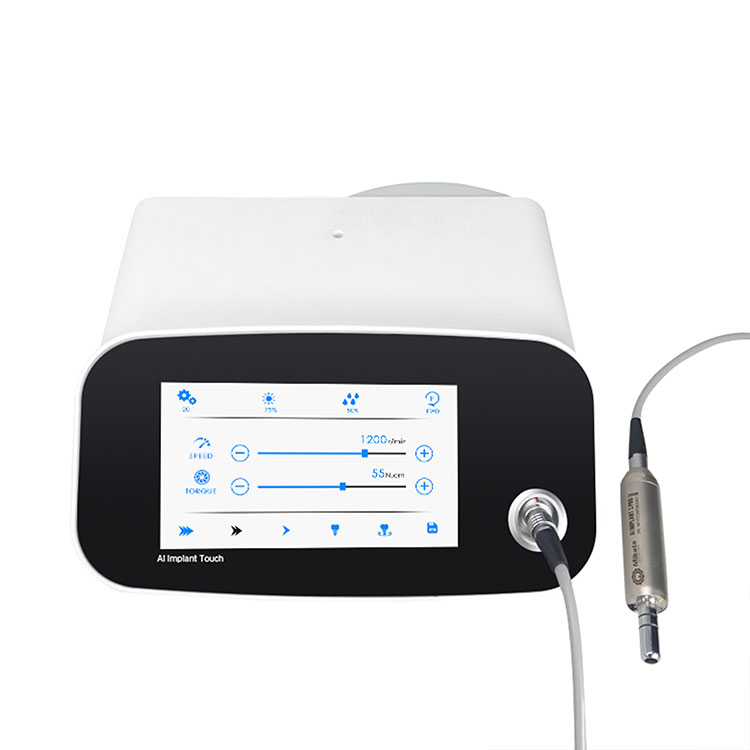

1. With simple operation, precise torque control, strong and stable motor and rationally designedoperation process.AI Implant Touch makes dental implant surgery easier and safer.

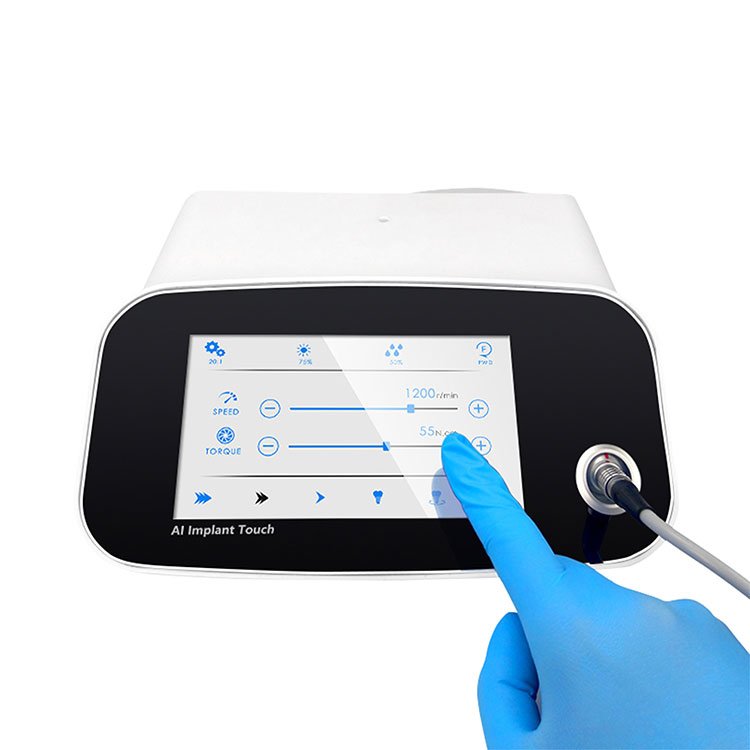

2. 360° color LCD Full-touch non reflective screen, Sensitivetouch screen.

3. The 5-rotor stepper motor, more accurate pumping/discharging, and more efficient liquid dispensing.

4. Real-time speed display, the operation is more intuitive and precise, and the surgicalvariables are fully controlled.

5. Cellular glass optic design, Imported German bearing, radial runout less than 0.01mm

6. The multi-functional foot pedal can easily control and switch thewater flow, program, rotation direction and intelligently control the speed.

Technical parameter:

Voltage: AC 100-230V

Voltage Fluctuation: ±10

Frequency: 50 Hz

Max.Power Consumption: 340VA

Rated voltage torque range: 5~70 N.cm

Rated voltage speed range: 100~40,0o0 rpm

Cooling Water flow: 10-100 ml/min

Operation Mode: S3(3/10 MIN)

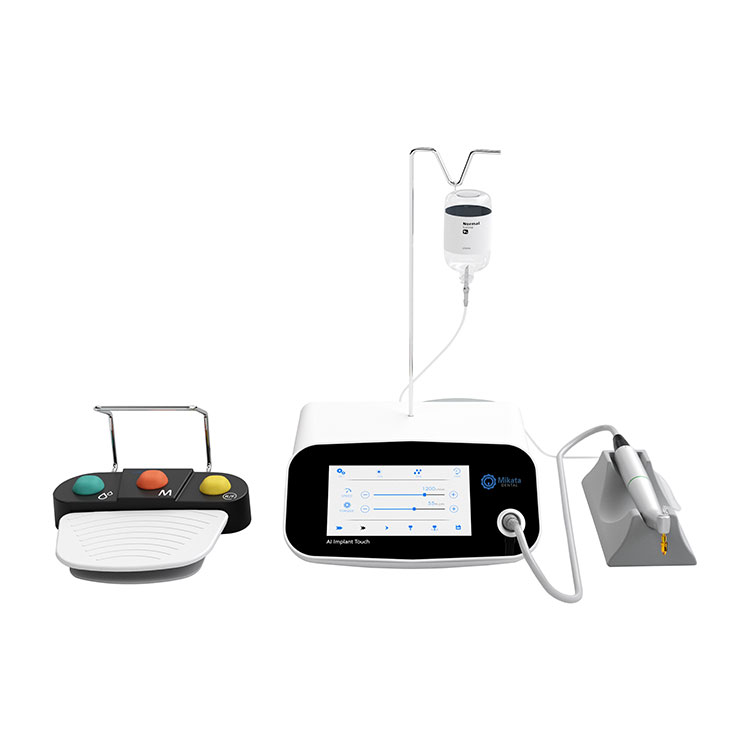

Components:

1. Control Terminal

2. 20:1 Contra angle

3. Foot Switch

4. Motor with cable

5. Water bottle bracket

6. Power cord

7. Disposable Infusion tubing

8. Motor Bracket
